LANDTEK Thickness Gauge Ultrasonic Thickness and Corrosion Gauge TM-8818 400mm TM-8818

1 Unit
MOQ
$175.00(1 - 1 Units) $170.00(2 - 4 Units) $160.00(5 - 9 Units) $145.00(>=10 Units)
цена
LANDTEK Thickness Gauge Ultrasonic Thickness and Corrosion Gauge TM-8818 400mm TM-8818
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 year
Type: THICKNESS METER
Customized support: OEM
Model Number: TM-8818
resolution convertion: 0.1 / 0.01
product name: Ultrasonic Thickness Gauge
Operating Principle: ultrasonic
Sound Velocity: 1000~9,999 m/s
Основная информация
Model Number: TM-8818
Оплата и доставка Условия
Packaging Details: 1 unit is 1kg. carton size: 26*26*8.5cm 20pcs is 14.5kg. carton size: 45*28*57cm
Характер продукции

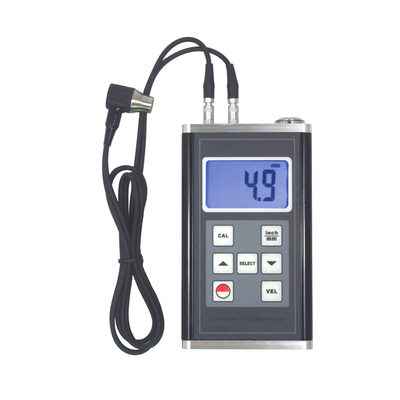

Ultrasonic Thickness Gauge

Model No: TM-8818 ( 0.75-400mm)

Product Description

Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
Case Material Aluminum Alloy
Display 4 Digit LCD
Operating Principle Ultrasonic
Measuring Range (metric / Imperial) 0.75~400 mm ( 45 # steel, Depend on Probe )
Battery Indication Low Battery Indication
Sound Velocity 1000~9,999 m/s
Lower Limit Steel Pipes 20 x 3.0 mm
Calibration Block Included
Resolution 0.01 mm / 0.1 mm
Accuracy ± (0.5%n + 0.05)
Automatic memory material code and the value of sound velocity
Power off Auto Power off & Manual Power Off
Operating Conditions Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply 2 x 1.5 V AA (UM-3) Battery
Dimensions 130 x 76 x 31 mm
Weight 340 g (Not Including Batteries)


Standard Accessories:

1. Main Unit

2. 5M / 8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M / 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M / 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe

4. USB, RS-232C data cable with software

Packaging & Shipping

1 unit is 1kg. carton size: 26*26*8.5cm
20pcs is 14.5kg. carton size: 45*28*57cm

ship by DHL, FEDEX , UPS, AIR, SEA

Our Services

One year after service, supply service forever
